Robotic Palletizer
Model: Custom-Engineered Solutions
Precision Automation for High-Speed End-of-Line Operations
Overview
Our Robotic Palletizer systems represent the pinnacle of end-of-line automation, engineered to handle bags, boxes, cartons, and containers with unmatched speed, precision, and flexibility. Utilizing industry-leading robots from ABB, FANUC, YASKAWA, and KUKA, these systems are tailored to meet specific production requirements, ensuring optimal throughput, reduced labor costs, and consistent pallet quality for industries ranging from cement and chemicals to food and pharmaceuticals.
Technical Specifications
| Feature | Specification |
|---|---|
| Robot Brands | ABB / FANUC / YASKAWA / KUKA (Customer Choice) |
| Payload Capacity | Up to 250 kg (model dependent) |
| Reach | Up to 3.1 m (customizable) |
| Speed | Up to 1,500 bags/hour (product & pattern dependent) |
| Pallet Types | EUR, ISO, CHEP, or custom sizes |
| Gripper Types | Pneumatic Bag Gripper, Vacuum Cups, Mechanical Clamp, Hybrid |
| Pallet Dispenser | Automatic, with up to 10-pallet storage capacity |
| Control System | PLC + Robot Controller with Touchscreen HMI |
| Power Supply | 415V, 3 Phase, 50 Hz |
| Air Supply | 6–7 bar, Clean & Dry |
Key Features
- High-Speed, High-Precision Robotics
6-axis articulated robots ensure smooth motion, accurate placement, and flexible pattern handling. - Customizable Gripper Solutions
Pneumatic, vacuum, or mechanical grippers designed for your specific product—gentle yet secure handling. - Automatic Pallet Handling
Integrated pallet dispenser and magazine system for continuous operation without manual intervention. - Flexible Pattern Programming
Store multiple pallet patterns in HMI; quick changeover between products with recipe recall. - Safety-Engineered Enclosure
Full safety fencing with light curtains, emergency stops, and interlocks compliant with international standards. - Smart Vision Systems (Optional)
Automatic product orientation correction, barcode verification, and quality inspection.
How It Works – Seamless Automation

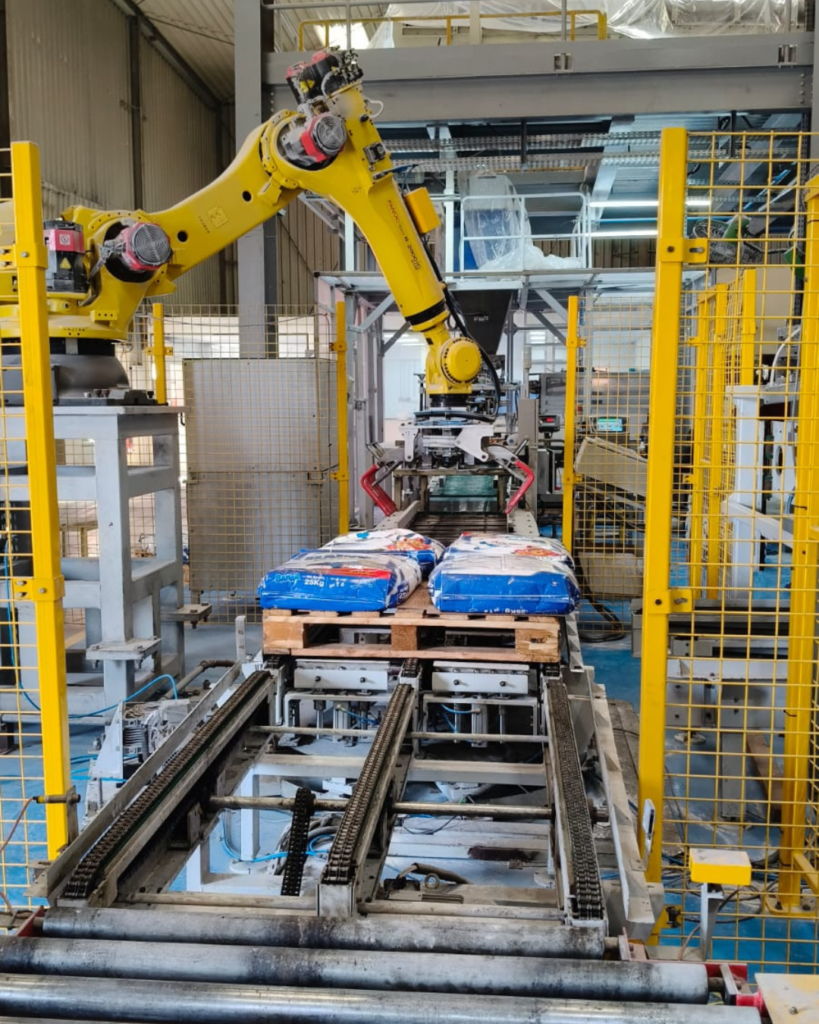

- Product Infeed – Bags/boxes arrive via conveyor, are aligned and spaced for pick-up.
- Robot Pick & Place – Robot picks product(s) with custom gripper and places in pre-programmed pattern.
- Layer Formation – Complete layers are built with optional slip-sheet or layer-pad insertion.
- Pallet Handling – Empty pallets auto-fed; full pallets transferred to stretch wrapper or exit conveyor.
- Continuous Cycle – System runs autonomously with real-time monitoring and fault alerts.
Applications
- Cement & Building Materials: Bagged cement, mortar, tiles
- Chemicals & Fertilizers: Woven sacks, bags, boxes
- Food & Beverage: Cartons, cases, bags (flour, sugar, grains)
- Consumer Goods: Boxed products, bundles, shrink-wrapped packs
- Pharmaceuticals: Cartons, cases, totes
- Plastics & Polymers: Bagged resins, masterbatch, granules
Optional Modules & Integration
- Multi-Line Infeed Systems – Palletize from multiple production lines simultaneously
- Automatic Slip-Sheet/Layer Pad Dispenser – For product stability during transport
- Pallet Conveyor & Accumulation – Automated transfer to downstream processes
- Stretch Wrapper Integration – Fully automated end-of-line pallet wrapping
- SCADA/MES Connectivity – Production monitoring, OEE tracking, ERP integration
- Remote Diagnostics & Alerts – IoT-enabled predictive maintenance and mobile notifications
- Bag Flattener/Compactor – For uniform pallet stacking and increased stability
Why Choose Our Robotic Palletizer?
✅ Maximized Throughput – Handles up to 1,500 bags/hour with unwavering consistency.
✅ Unmatched Flexibility – Quick reprogramming for different products, patterns, and pallet sizes.
✅ Space-Efficient Design – Compact footprint with vertical reach for high stacking.
✅ Reduced Operational Costs – Minimizes labor, reduces product damage, and optimizes floor space.
✅ Proven Robotic Reliability – Industry-leading brands ensure durability and uptime.
✅ Future-Ready – Modular design allows for upgrades and integration with Industry 4.0 systems.
Trusted by Global Leaders
Our robotic palletizers are operational in demanding environments worldwide, including:
- Almatis – Advanced ceramic materials handling
- National Detergents – Oman
- TRL-KROSAKI – Refractory products, Odisha
Custom Engineering Process
We don’t just sell machines—we engineer solutions:
- Site Audit & Requirement Analysis – Understand your line layout and production goals.
- Simulation & Design – 3D simulation to validate cycle times and workflow.
- Custom Gripper & Tooling Design – Tailored to your product specifications.
- Factory Acceptance Test (FAT) – Witness testing before shipment.
- Installation & Training – On-site commissioning and operator training.
- Lifetime Support – AMC, spare parts, and remote assistance.
Request a Robotic Palletizing Assessment
✅ Free Line Evaluation – Our engineers assess your current process and recommend solutions.
✅ Live Demonstration – Visit our facility or view recorded runs with similar products.
✅ ROI Analysis – Detailed report on labor savings, efficiency gains, and payback period.
✅ Pilot Project – Start with a single line before full-scale implementation.
📞 Call/WhatsApp: +91 98454 52906
📧 Email: indusdigitalmarketing01@gmail.com
🌐 Website: www.induscontrol.in
Transform your end-of-line operations with precision robotics. Let’s build your automated future together.
