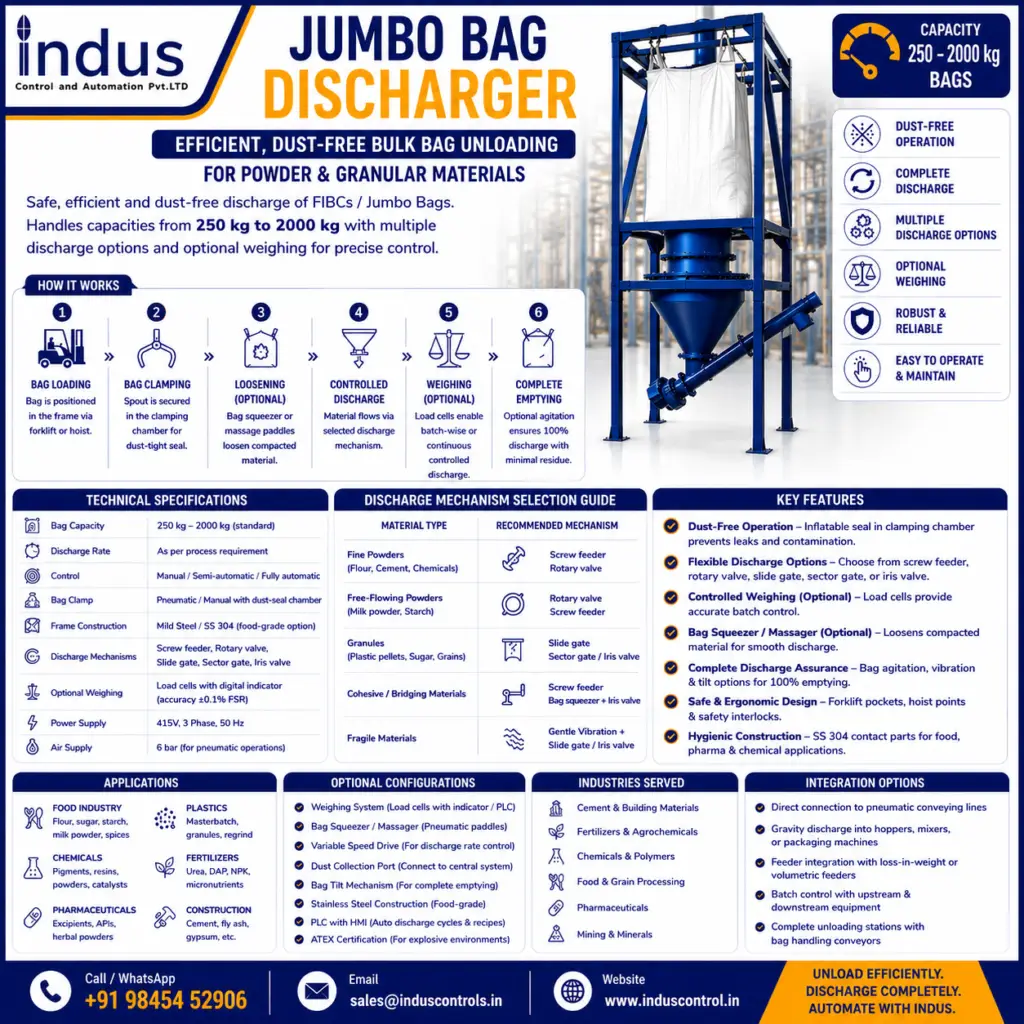

Jumbo Bag Discharger
Efficient, Dust-Free Bulk Bag Unloading for Powder & Granular Materials

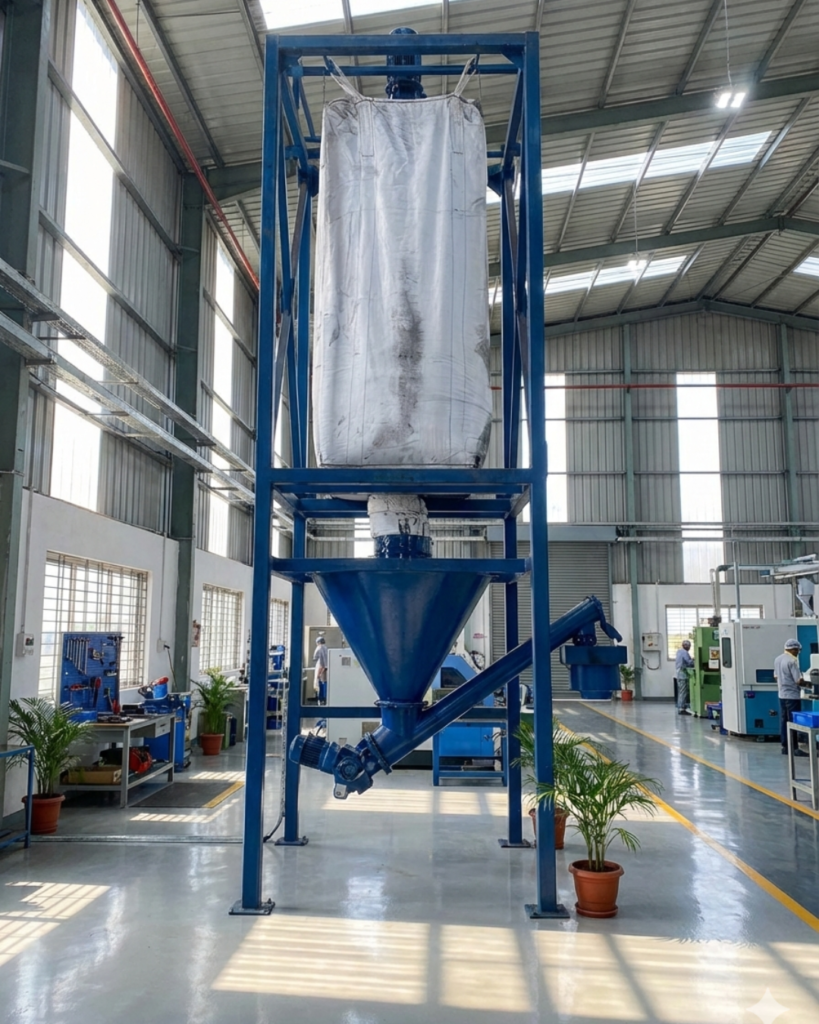

The Indus Jumbo Bag Discharger (also known as FIBC Unloader) is engineered for safe, efficient, and dust-free discharge of bulk materials from Flexible Intermediate Bulk Containers (FIBCs) / Jumbo Bags. Designed to handle capacities from 250 kg to 2000 kg, this system ensures complete or controlled discharge into downstream processes. Customizable with various feeding mechanisms and optional weighing systems, it is ideal for industries requiring hygienic, loss-free material transfer.
How It Works
- Bag Loading – Jumbo bag is positioned in the discharger frame via forklift or hoist.
- Bag Clamping – Discharge spout is secured in the clamping chamber for dust-tight connection.
- Loosening (Optional) – Bag squeezer or massage paddles loosen compacted material.
- Controlled Discharge – Material flows via screw feeder, rotary valve, or gate into downstream equipment.
- Weighing (Optional) – Load cells enable batch-wise or continuous controlled discharge by weight.
- Complete Emptying – Optional bag agitation ensures 100% discharge with minimal residue.
Technical Specifications
| Feature | Specification |
|---|---|
| Bag Capacity | 250 kg – 2000 kg (standard) |
| Discharge Rate | As per process requirement |
| Control | Manual / Semi-automatic / Fully automatic |
| Bag Clamp | Pneumatic / Manual with dust-seal chamber |
| Frame Construction | Mild Steel / SS 304 (food-grade option) |
| Discharge Mechanisms | Screw feeder, Rotary valve, Slide gate, Sector gate |
| Optional Weighing | Load cells with digital indicator (accuracy ±0.1% FSR) |
| Power Supply | 415V, 3 Phase, 50 Hz |
| Air Supply | 6 bar (for pneumatic operations) |
Key Features
- Dust-Free Operation
Clamping chamber with inflatable seal ensures leak-proof connection, preventing product loss and environmental contamination. - Flexible Discharge Options
Choose mechanism based on material characteristics:- Screw Feeder – For powders, fine materials
- Rotary Feeder – For free-flowing powders
- Slide Gate / Sector Gate – For granules, pellets
- Controlled Weighing System (Optional)
Integrated load cells allow precise batch discharge by weight, perfect for recipe-based processes. - Bag Squeezer / Massager (Optional)
Pneumatic paddles gently compress and agitate bag to loosen compacted or bridging materials. - Complete Discharge Assurance
Optional bag tilt mechanism and vibrators ensure 100% emptying with minimal residue. - Safe & Ergonomic Design
Forklift pockets, hoist attachment points, and safety interlocks for operator protection. - Hygienic Construction
SS 304 contact parts available for food, pharmaceutical, and chemical applications.
Discharge Mechanism Selection Guide
| Material Type | Recommended Mechanism |
|---|---|
| Fine Powders (Flour, Cement, Chemicals) | Screw Feeder |
| Free-Flowing Powders (Milk powder, Starch) | Rotary Feeder |
| Granules (Plastic pellets, Sugar, Grains) | Slide Gate / Sector Gate |
| Cohesive / Bridging Materials | Screw Feeder + Bag Squeezer |
| Fragile Materials | Gentle vibration + Slide Gate |
Applications
- Food Industry: Flour, sugar, starch, milk powder, spices
- Chemicals: Pigments, resins, polymers, catalysts
- Pharmaceuticals: Excipients, APIs, herbal powders
- Plastics: Masterbatch, granules, regrind material
- Fertilizers: Urea, DAP, NPK, micronutrients
- Minerals: Talc, calcium carbonate, bentonite
- Construction: Cement, fly ash, gypsum
Optional Configurations
| Option | Description |
|---|---|
| Weighing System | Load cells with digital indicator / PLC for batch control |
| Bag Squeezer / Massager | Pneumatic paddles to loosen compacted material |
| Variable Speed Drive | For precise discharge rate control |
| Dust Collection Port | Connection to central dust extraction system |
| Bag Tilt Mechanism | Tilts bag for complete emptying |
| Stainless Steel Construction | Food-grade or corrosive material applications |
| ATEX Certification | For explosive environments |
| PLC with HMI | Fully automated discharge cycles & recipe management |
Industries Served
| Industry | Typical Materials |
|---|---|
| Food Processing | Flour, sugar, starch, milk powder |
| Chemicals | Pigments, resins, powders |
| Pharmaceuticals | Excipients, active ingredients |
| Plastics | Masterbatch, granules, additives |
| Fertilizers | Urea, DAP, micronutrients |
| Minerals | Talc, calcium carbonate |
| Construction | Cement, fly ash, gypsum |
Why Choose Our Jumbo Bag Discharger?
✅ Dust-Free Operation – Protects workers and environment
✅ Material Versatility – Handles powders to granules
✅ Complete Discharge – Minimizes waste and residue
✅ Flexible Control – Manual to fully automated options
✅ Accurate Batching – Optional weighing for recipe control
✅ Robust Construction – Built for 24/7 industrial use
✅ Customizable – Tailored to your material & process
Integration Options
- Direct Connection to pneumatic conveying lines
- Gravity Discharge into hoppers, mixers, or packaging machines
- Feeder Integration with loss-in-weight or volumetric feeders
- Batch Control with upstream and downstream equipment
- Complete Unloading Stations with bag handling conveyors
Request a Custom Solution
✅ Material Testing – Evaluate flow characteristics in our lab
✅ Process Analysis – Determine optimal discharge mechanism
✅ Layout Design – CAD drawings for seamless integration
✅ Turnkey Installation – Complete commissioning & training
✅ After-Sales Support – AMC, spare parts, remote assistance
📞 Call/WhatsApp: +91 98454 52906
📧 Email: indusdigitalmarketing01@gmail.com
🌐 Website: www.induscontrol.in
Unload efficiently. Discharge completely. Automate with Indus.
