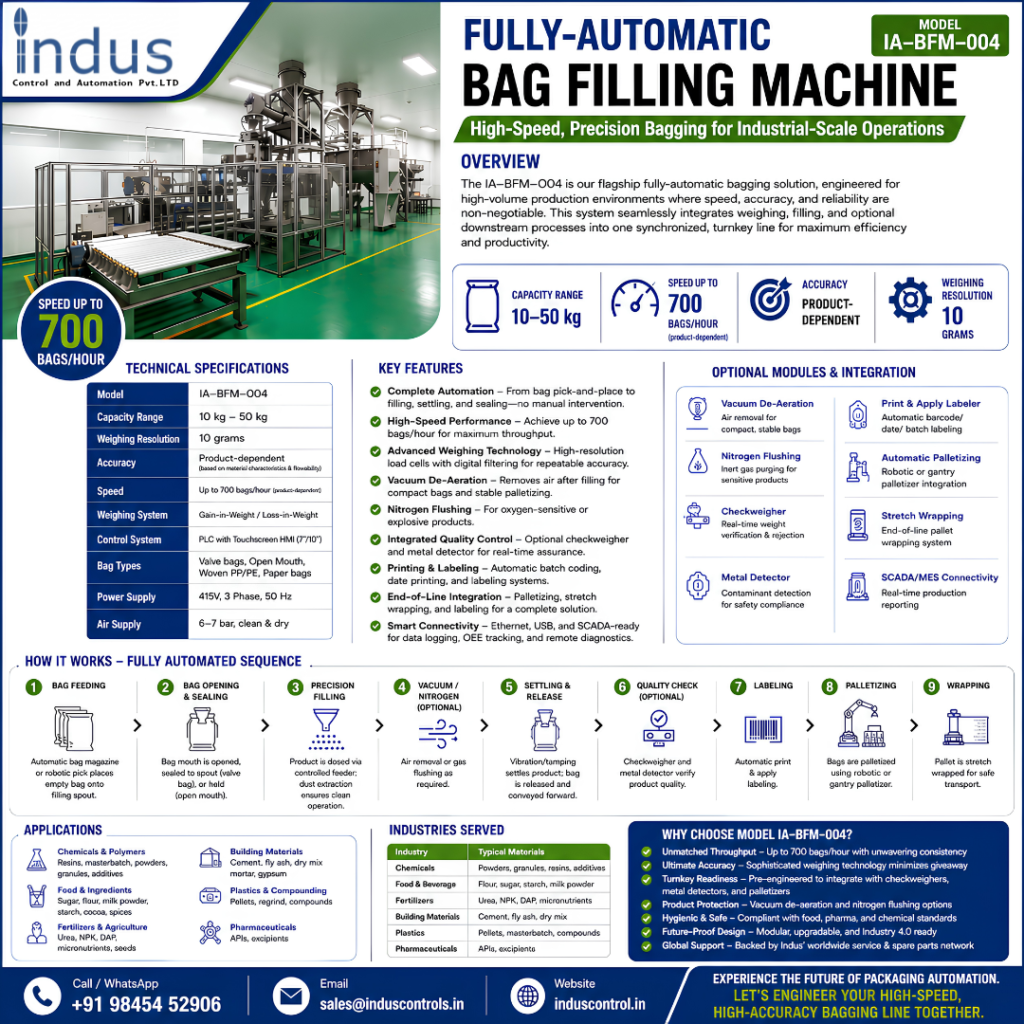

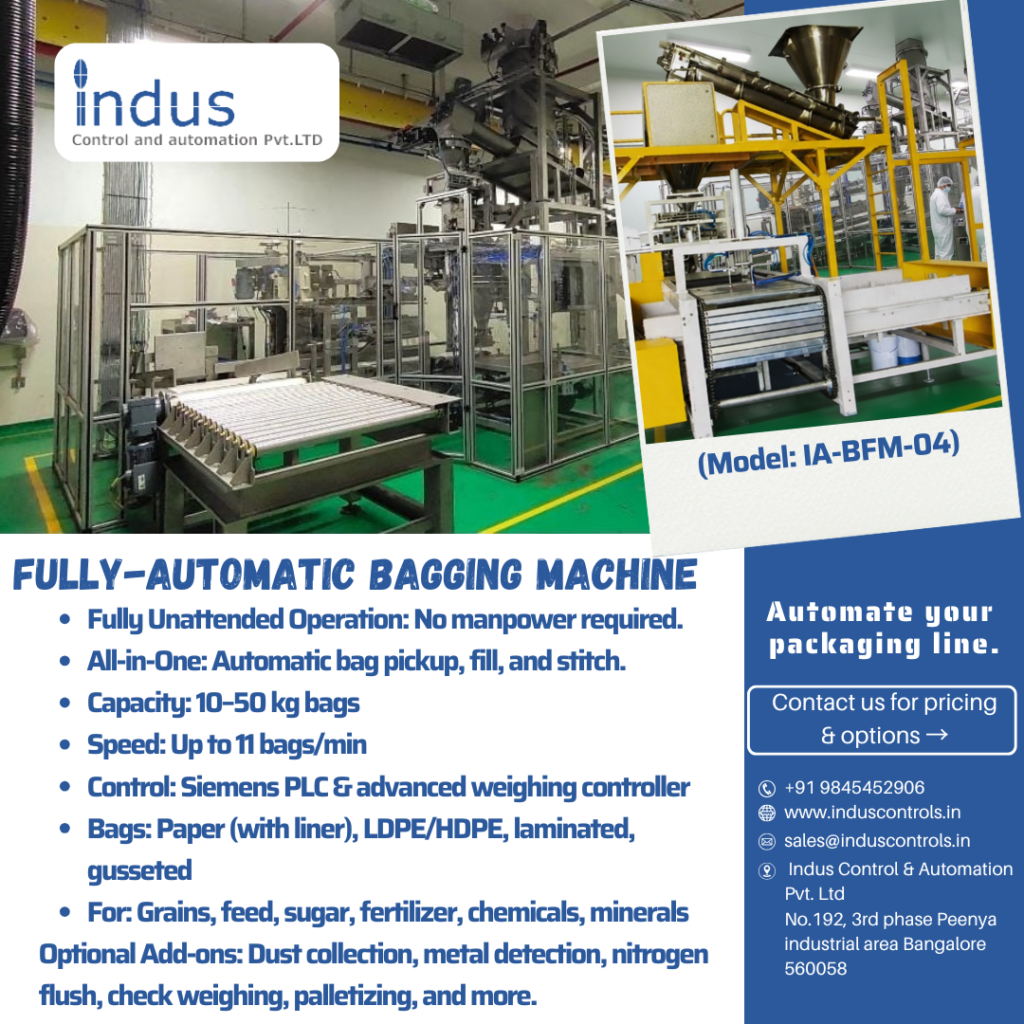

Fully-Automatic Bag Filling Machine
Model: IA–BFM–004
High-Speed, Precision Bagging for Industrial-Scale Operations
WHY CHOOSE US
Fully Automatic High-Speed Bagging Built for Industrial Scale
The IA–BFM–004 delivers advanced automated packaging with high-speed filling, precision weighing, and seamless integration for chemicals, fertilizers, food products, plastics, and bulk materials.
High-Speed Automation
Achieve production speeds up to 700 bags/hour with fully automated bag feeding, filling, sealing, and conveying.
Precision Weighing
Advanced gain-in-weight and loss-in-weight technology ensures reliable and repeatable filling accuracy.
Smart Integration
Compatible with checkweighers, metal detectors, palletizers, stretch wrappers, and SCADA systems.
Smart Factory Connectivity
PLC-based touchscreen controls with Ethernet and remote monitoring for smart factory operations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | IA–BFM–004 |
| Capacity Range | 10 kg – 50 kg |
| Weighing Resolution | 10 grams |
| Accuracy | Product-dependent (based on material characteristics & flowability) |
| Speed | Up to 700 bags/hour (product-dependent) |
| Weighing System | Gain-in-Weight / Loss-in-Weight |
| Control System | PLC with Touchscreen HMI (7”/10”) |
| Bag Types | Valve bags, Open Mouth, Woven PP/PE, Paper bags |
| Power Supply | 415V, 3 Phase, 50 Hz |
| Air Supply | 6–7 bar, clean & dry |
What we offer
Advanced Packaging Automation for Faster Industrial Production
The IA–BFM–004 combines high-speed automation, intelligent weighing, and integrated quality systems to deliver maximum productivity with minimal manual intervention.
Performance
Up to 700 bags/hour with synchronized filling, conveying, and end-of-line automation.
Accuracy
Advanced digital weighing technology minimizes product giveaway and ensures consistency.
Future-Ready Design
Modular automation platform with scalable upgrades and smart connectivity.
FEATURES
Key Features
Fully automated bagging with precision weighing, high-speed operation, and seamless end-of-line integration.
Complete Automation
From automatic bag pick-and-place to filling, settling, and sealing—no manual intervention required.
High-Speed Performance
Achieve up to 700 bags/hour for maximum production throughput.
Advanced Weighing Technology
High-resolution load cells with digital filtering ensure repeatable accuracy.
Vacuum De-Aeration
Removes air from product after filling for compact bags and stable palletizing.
Nitrogen Flushing
For oxygen-sensitive or explosive products.
Integrated Quality Control
Optional checkweigher and metal detector for real-time quality assurance.
Printing & Labeling
Automatic batch coding, date printing, and labeling systems.
End-of-Line Integration
Seamless connection to palletizing and stretch wrapping systems.
Smart Connectivity
Ethernet, USB, and SCADA-ready for data logging, OEE tracking, and remote diagnostics.
Why Choose Model IA–BFM–004?
Combines high throughput, exceptional accuracy, and complete automation for maximum packaging efficiency.
Unmatched Throughput
Up to 700 bags/hour with unwavering consistency
Ultimate Accuracy
Sophisticated weighing technology minimizes giveaway
Turnkey Readiness
Pre-engineered to integrate with checkweighers, metal detectors, and palletizers
Future-Proof Design
Modular, upgradable, and Industry ready
Global Support
Backed by Indus’ worldwide service and spare parts network
Services
Industries Served
Engineered for chemical, food, fertilizer, plastic, pharmaceutical, and construction material industries.
Chemicals
Powders, granules, resins, additives
Food & Beverage
Flour, sugar, starch, milk powder
Fertilizers
Urea, NPK, DAP, micronutrients
Building Materials
Cement, fly ash, dry mix
Plastics
Pellets, masterbatch, compounds
Pharmaceuticals
APIs, excipients
WHAT WE DO
Applications
| Material Type | Examples |
|---|---|
| Chemicals & Polymers | Resins, masterbatch, powders, granules, additives |
| Food & Ingredients | Sugar, flour, milk powder, starch, cocoa, spices |
| Fertilizers & Agriculture | Urea, NPK, DAP, micronutrients, seed |
| Building Materials | Cement, fly ash, dry mix mortar, gypsum |
| Plastics & Compounding | Pellets, regrind, compounds |
Make the switch to fully automatic. Make the switch to Indus.
Fully automatic. Fully accurate. Fully Indus.
- Vacuum De-Aeration - Removes air for compact, stable bags
- Nitrogen Flushing - Inert gas purging for sensitive products
- Checkweigher - Real-time weight verification & rejection
- Metal Detector - Contaminant detection for safety compliance
- Print & Apply Labeler - Automatic barcode/date/batch labeling
- Automatic Palletizing - Robotic or gantry palletizer integration
- Stretch Wrapping - End-of-line pallet wrapping system
- SCADA/MES Connectivity - Real-time production reporting
Bag Feeding – Automatic bag magazine or robotic pick places empty bag onto filling spout.
Bag Opening & Sealing – Bag mouth is opened, sealed to spout (valve bag), or held (open mouth).
Precision Filling – Product is dosed via controlled feeder; dust extraction ensures clean operation.
Vacuum / Nitrogen (Optional) – Air removal or gas flushing as required.
Settling & Release – Vibration/tamping settles product; bag is released and conveyed forward.
Quality Check – Optional checkweigher and metal detector verify product quality.
Labeling – Automatic print & apply labeling.
Palletizing & Wrapping – Integrated end-of-line automation.
High-Speed Filling - Automated production with consistent output and reduced downtime.
Quality Assurance - Integrated inspection systems for safer and more reliable packaging.
Future-Ready Design - Modular automation platform with scalable upgrades and smart connectivity.
Ultimate Accuracy – Sophisticated weighing technology minimizes giveaway
Turnkey Readiness – Pre-engineered to integrate with checkweighers, metal detectors, and palletizers
Product Protection – Vacuum de-aeration and nitrogen flushing options
Hygienic & Safe – Compliant with food, pharma, and chemical industry standards
Future-Proof Design – Modular, upgradable, and Industry 4.0 ready
