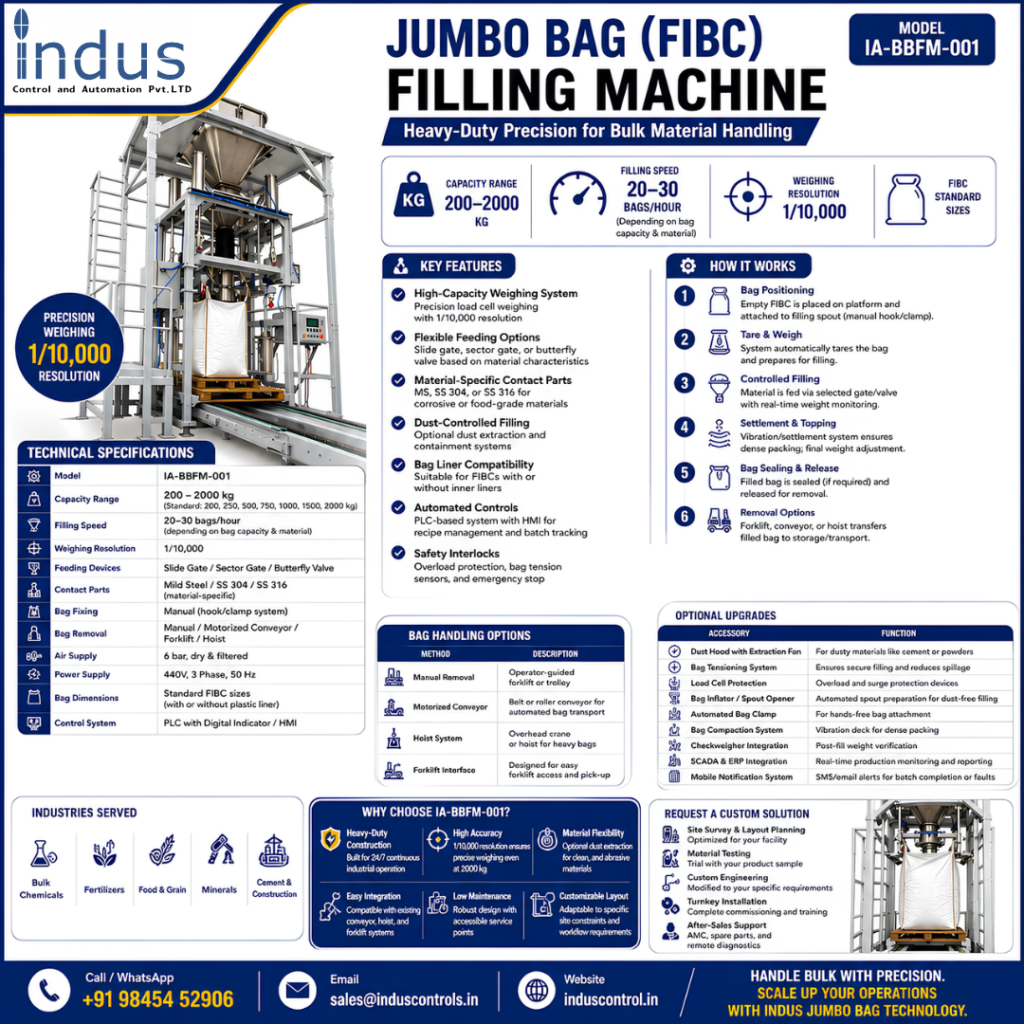

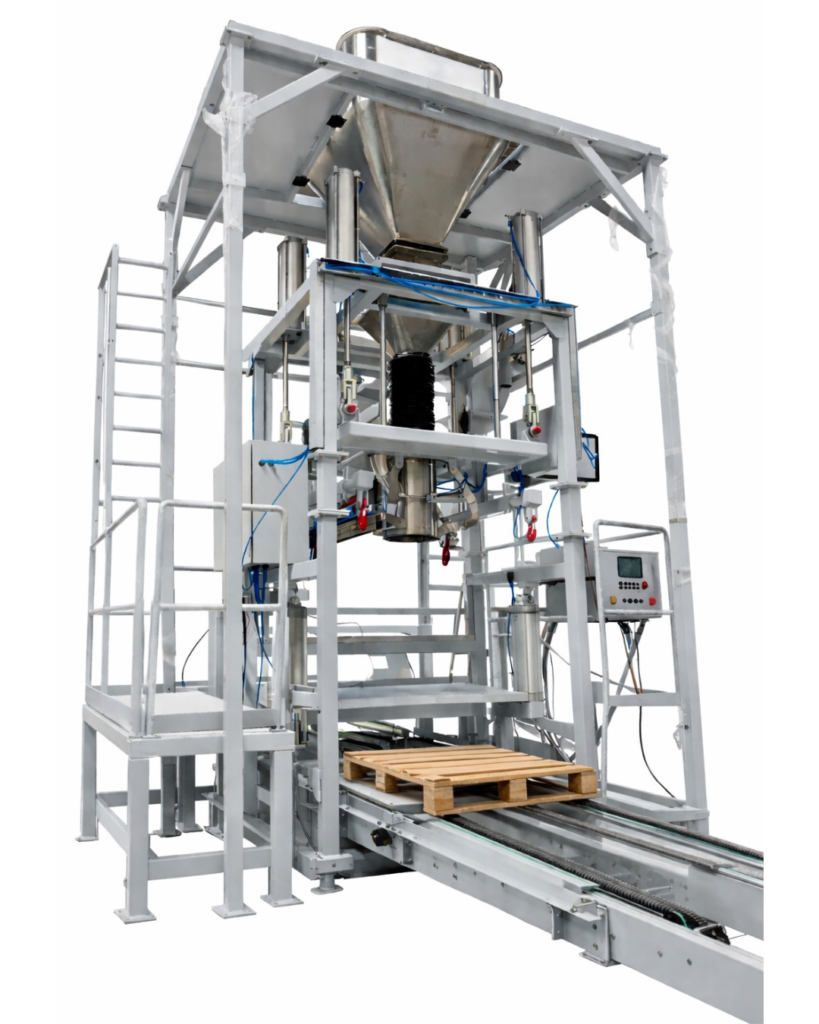

Jumbo Bag (FIBC) Filling Machine
Model: IA-BBFM-001
Heavy-Duty Precision for Bulk Material Handling
WHY CHOOSE US
Jumbo Bag Filling Solutions for Bulk Material Handling
The IA-BBFM-001 is engineered for high-capacity FIBC filling with exceptional weighing accuracy, rugged construction, and seamless handling of powders, granules, fertilizers, minerals, and bulk industrial materials.
High-Capacity Filling
Efficient filling of jumbo bags from 200 kg to 2000 kg with precise weight control.
Dust-Controlled Operation
Optional dust extraction systems ensure cleaner, safer, and environmentally friendly production.
Precision Weighing
Advanced load-cell technology delivers reliable weighing accuracy with 1/10,000 resolution.
Flexible Material Handling
Compatible with conveyors, forklifts, hoists, and multiple bag handling configurations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | IA-BBFM-001 |
| Capacity Range | 200 – 2000 kg (Standard: 200, 250, 500, 750, 1000, 1500, 2000 kg) |
| Filling Speed | 20–30 bags/hour (depending on bag capacity & material) |
| Weighing Resolution | 1/10,000 |
| Feeding Devices | Slide Gate / Sector Gate / Butterfly Valve |
| Contact Parts | Mild Steel / SS 304 / SS 316 (material-specific) |
| Bag Fixing | Manual (hook/clamp system) |
| Bag Removal | Manual / Motorized Conveyor / Forklift / Hoist |
| Air Supply | 6 bar, dry & filtered |
| Power Supply | 440V, 3 Phase, 50 Hz |
| Bag Dimensions | Standard FIBC sizes (with or without plastic liner) |
| Control System | PLC with Digital Indicator / HMI |
What we offer
Precision Jumbo Bag Filling for Large-Scale Industrial Applications
Our IA-BBFM-001 provides dependable FIBC filling solutions with advanced weighing technology, flexible handling systems, and customizable automation options.
Capacity
Supports filling capacities from 200 kg to 2000 kg for diverse bulk packaging requirements.
Accuracy
High-resolution weighing technology ensures consistent and reliable bag weights.
Flexibility
Handles food products, fertilizers, chemicals, minerals, cement, and other bulk materials.
FEATURES
Key Features
Accurate digital weighing, robust construction, and easy operation ensure reliable bag filling for medium-scale production.
High-Capacity Weighing System
Precision load cell weighing with 1/10,000 resolution
Flexible Feeding Options
Slide gate, sector gate, or butterfly valve based on material characteristics
Material-Specific Contact Parts
MS, SS 304, or SS 316 for corrosive or food-grade materials
Dust-Controlled Filling
Optional dust extraction and containment systems
Bag Liner Compatibility
Suitable for FIBCs with or without inner liners
Automated Controls
PLC-based system with HMI for recipe management and batch tracking
Safety Interlocks
Overload protection, bag tension sensors, and emergency stop
WHAT WE DO
Why Choose IA-BBFM-001?
Delivers accurate, heavy-duty bulk filling with flexible configurations, low maintenance, and seamless plant integration.
Heavy-Duty Construction
Built for 24/7 continuous industrial operation
High Accuracy
1/10,000 resolution ensures precise weighing even at 2000 kg
Material Flexibility
Suitable for food-grade, corrosive, and abrasive materials
Dust-Free Operation
Optional dust extraction for clean, safe environment
Easy Integration
Compatible with existing conveyor, hoist, and forklift systems
Low Maintenance
Robust design with accessible service points
Services
Industries Served
Designed for bulk chemicals, fertilizers, food processing, minerals, construction, and logistics industries.
Bulk Chemicals
Handles Polymers, Resins, and Granules.
Fertilizers
Manages Urea, NPK, and DAP.
Food & Grain
Processes Sugar, Grains, and Starch.
Minerals
Transfers Salt, Silica, and Limestone.
Cement & Construction
Moves Cement, Fly Ash, and Bentonite.
Ports & Logistics
Focuses on Bulk Material Handling at Terminals.
WHAT WE DO
Applications
| Industry | Typical Materials |
|---|---|
| Bulk Chemicals | Polymers, resins, granules |
| Fertilizers | Urea, NPK, DAP |
| Food & Grain | Sugar, grains, starch |
| Minerals | Salt, silica, limestone |
| Cement & Construction | Cement, fly ash, bentonite |
| Ports & Logistics | Bulk material handling at terminals |
Lift. Fill. Seal. Ship. Bulk made simple.
Handle bulk with precision. Scale up with Indus Jumbo Bag Technology.
Bag Positioning – Empty FIBC is placed on platform and attached to filling spout (manual hook/clamp).
Tare & Weigh – System automatically tares the bag and prepares for filling.
Controlled Filling – Material is fed via selected gate/valve with real-time weight monitoring.
Settlement & Topping – Vibration/settlement system ensures dense packing; final weight adjustment.
Bag Sealing & Release – Filled bag is sealed (if required) and released for removal.
Removal Options – Forklift, conveyor, or hoist transfers filled bag to storage/transport.
- Manual Removal – Operator-guided forklift or trolley
- Motorized Conveyor – Belt or roller conveyor for automated bag transport
- Hoist System – Overhead crane or hoist for heavy bags
- Forklift Interface – Designed for easy forklift access and pick-up
- Dust Hood with Extraction Fan – For dusty materials like cement or powders
- Bag Tensioning System – Ensures secure filling and reduces spillage
- Load Cell Protection – Overload and surge protection devices
- Bag Inflator/Spout Opener – Automated spout preparation for dust-free filling
- Automated Bag Clamp – For hands-free bag attachment
- Bag Compaction System – Vibration deck for dense packing
- Checkweigher Integration – Post-fill weight verification
- SCADA & ERP Integration – Real-time production monitoring and reporting
- Mobile Notification System – Sms/email alerts for batch completion or faults
- Up to 2000 kg Capacity
High-Accuracy Weighing
Dust-Controlled Filling
Flexible Bag Handling
PLC-Based Automation
Industrial-Grade Reliability
Handle bulk with precision. Scale up your operations with Indus Jumbo Bag Technology.
