Gantry Type Palletizer
High-Speed, Precision Palletizing for Bags & Boxes
Overview

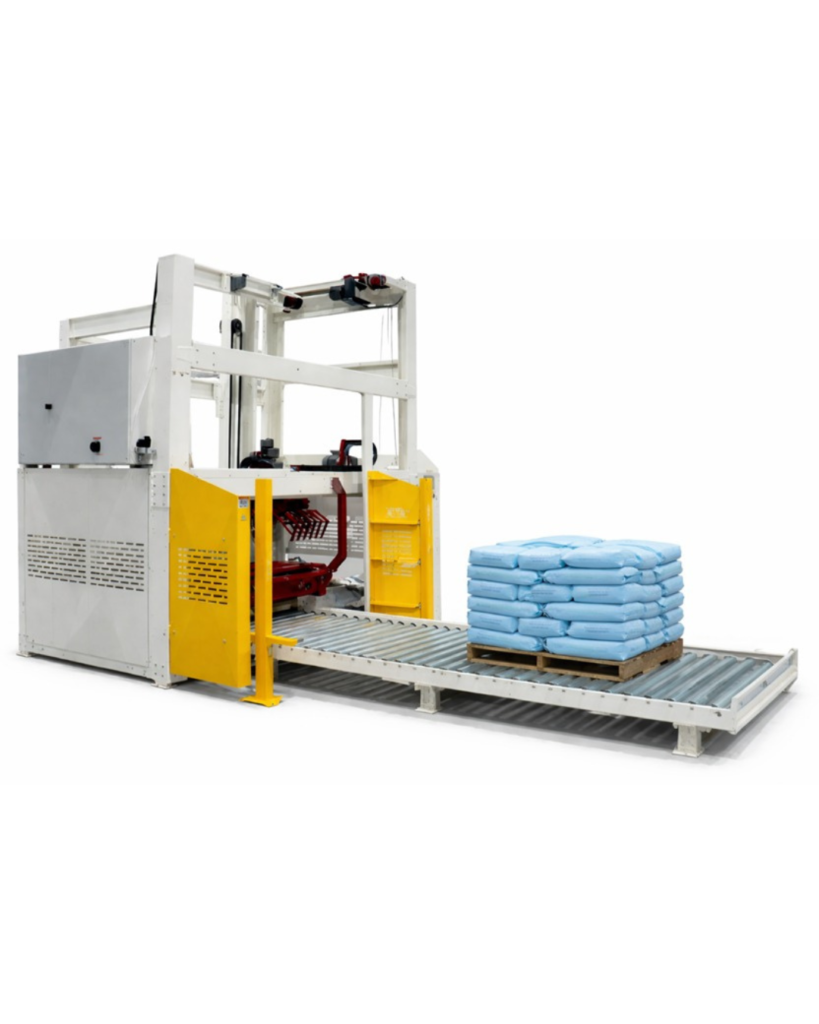

The Indus Gantry Type Palletizer is a robust, servo-driven automated system designed for high-speed stacking of bags, sacks, and boxes onto pallets. Utilizing precision ball screw mechanisms on X and Y axes, this palletizer delivers accurate, repeatable placement at speeds up to 600 bags per hour. Ideal for cement, fertilizer, chemical, and food industries requiring reliable, low-maintenance palletizing solutions.
Technical Specifications
| Feature | Specification |
|---|---|
| Speed | Up to 600 bags per hour |
| Bag Gripper | Pneumatic bag gripper (gentle & secure) |
| X-Axis Drive | Servo motor with ball screw mechanism |
| Y-Axis Drive | Servo motor with ball screw mechanism |
| Z-Axis | Pneumatic or servo (optional) |
| Control System | PLC with Touchscreen HMI |
| Pallet Pattern | Customizable via HMI (multiple patterns) |
| Bag Types | Woven sacks, paper bags, PP bags, boxes |
| Pallet Dispenser | Optional automatic pallet magazine |
| Power Supply | 415V, 3 Phase, 50 Hz |
| Air Supply | 6 bar, clean & dry |
Key Features
- High-Speed Operation – Up to 600 bags/hour for continuous production lines
- Precision Ball Screw Mechanism – Servo-driven X & Y axes ensure accurate, repeatable placement
- Pneumatic Bag Gripper – Gentle yet firm grip prevents bag damage
- Flexible Pattern Programming – Store multiple pallet patterns for quick changeover
- PLC + HMI Control – User-friendly interface for speed, pattern, and diagnostics
- Robust Construction – Heavy-duty design for 24/7 industrial operation
- Low Maintenance – Ball screw drives require minimal upkeep compared to belt drives
- Compact Footprint – Space-efficient design compared to robotic palletizers
How It Works
- Bag Infeed – Bags arrive via conveyor, positioned for pick-up
- Gripper Engagement – Pneumatic gripper secures bag gently
- X-Y Movement – Servo-driven ball screws position bag over pallet
- Layer Formation – Bags placed in programmed pattern layer by layer
- Pallet Change – Full pallet exits; empty pallet auto-fed (optional)
- Continuous Cycle – System operates autonomously with minimal supervision
Applications
- Cement Industry: Bagged cement palletizing
- Fertilizer Plants: Fertilizer sack stacking
- Chemical Industries: Chemical bag palletizing
- Food Processing: Flour, sugar, grain bags
- Animal Feed Mills: Feed sack palletizing
- Building Materials: Mortar, plaster bags
Optional Features
- Automatic Pallet Dispenser – Magazine for 8-10 empty pallets
- Slip Sheet / Layer Pad Insertion – For product stability
- Bag Flattener – Ensures uniform bag shape before palletizing
- Stretch Wrapper Integration – Complete end-of-line automation
- SCADA / MES Connectivity – Production monitoring & reporting
- Vision System – Bag orientation correction
- Custom Grippers – For boxes, cartons, or special bag types
Why Choose Gantry Palletizer Over Robot?
| Advantage | Gantry Type | Robotic Arm |
|---|---|---|
| Speed | Up to 600 bags/hr | Up to 1200 bags/hr |
| Footprint | Compact rectangular | Requires clearance zone |
| Maintenance | Low (ball screw) | Moderate (gearboxes) |
| Cost | Cost-effective | Higher investment |
| Payload | High capacity | Model-dependent |
Industries Served
- Cement & Building Materials
- Fertilizers & Agrochemicals
- Chemicals & Polymers
- Food & Grain Processing
- Animal Feed & Poultry
- Mining & Minerals
Technical Advantages
✅ Servo-Driven Precision – Ball screw mechanism ensures accurate, repeatable placement
✅ High Throughput – 600 bags/hour keeps pace with production lines
✅ Gentle Bag Handling – Pneumatic gripper prevents damage
✅ Quick Changeover – Pattern adjustments via HMI in minutes
✅ Reliable Operation – Minimal downtime with robust construction
✅ Cost-Effective – Lower investment compared to robotic alternatives
Request a Palletizing Assessment
✅ Line Speed Analysis – Match palletizer to your production rate
✅ Bag Size & Pattern Design – Optimize stacking for stability
✅ Layout Integration – CAD drawings for seamless installation
✅ Turnkey Installation – Complete commissioning & training
✅ After-Sales Support – AMC, spare parts, remote diagnostics
📞 Call/WhatsApp: +91 98454 52906
📧 Email: indusdigitalmarketing01@gmail.com
🌐 Website: www.induscontrol.in
Stack smarter. Automate with Indus Gantry Palletizers.
